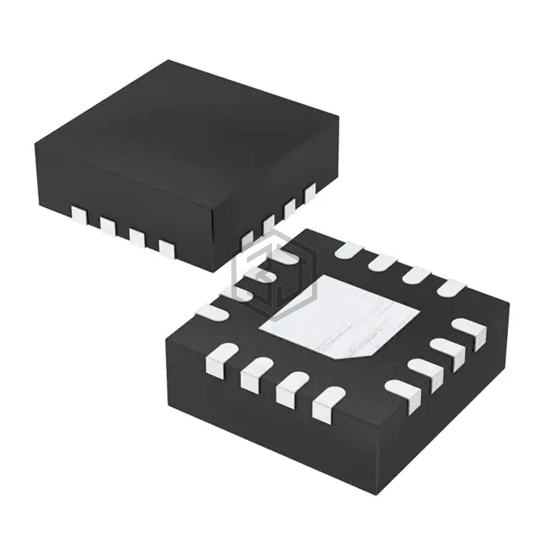

IC GATE DRVR HALF-BRIDGE 16MLPQ
IRS2113MTRPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 16MLPQ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 16-VFQFN Exposed Pad, 14 Leads.
In Stock: 8,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad, 14 Leads |
| Supplier Device Package | 16-MLPQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR25607SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 16SOIC | 100% | View |
| IRS2113STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 16SOIC | 100% | View |
| IRS2110STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 16SOIC | 98% | View |
| DGD2113S16-13 | Diodes Incorporated | IC GATE DRVR HALF-BRIDGE 16SO | 95% | View |
| FAN73901MX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 83% | View |
| FAN73933MX | onsemi | IC GATE DRVR HALF-BRIDGE 14SOP | 78% | View |
Submit your RFQ for IRS2113MTRPBF and get a quote within 24 hours.
