IC GATE DRVR HALF-BRIDGE 16MLPQ

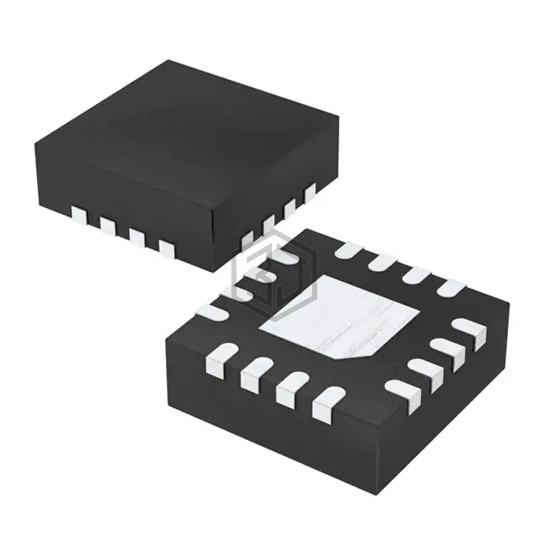

IRS2113MPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 16MLPQ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 16-VFQFN Exposed Pad, 14 Leads.
In Stock: 2,600
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad, 14 Leads |
| Supplier Device Package | 16-MLPQ (4x4) |
IRS2113MPBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS44262SPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 78% | View |
| IRS44262STRPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 78% | View |
| 2EDL23I06PJXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE DSO14 | 76% | View |
| IR25600SPBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8SOIC | 66% | View |
| LTC4444HMS8E#TRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 56% | View |
| LTC4444HMS8E#WPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 56% | View |
Submit your RFQ for IRS2113MPBF and get a quote within 24 hours.
