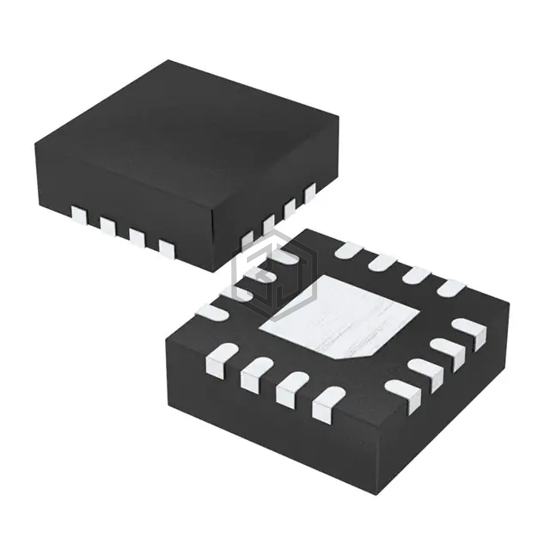

IC GATE DRVR HALF-BRIDGE 16MLPQ
IRS2001MPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 16MLPQ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 16-VFQFN Exposed Pad.
In Stock: 7,665
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 200 V |
| Rise / Fall Time (Typ) | 70ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-MLPQ (4x4) |
IRS2001MPBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS2005STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| IRS2005SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| IRS2304STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 87% | View |
| IRS2308SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 85% | View |
| L6398D | STMicroelectronics | IC GATE DRVR HALF-BRIDGE 8SO | 85% | View |
| IRS21084STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14SOIC | 85% | View |
Submit your RFQ for IRS2001MPBF and get a quote within 24 hours.
