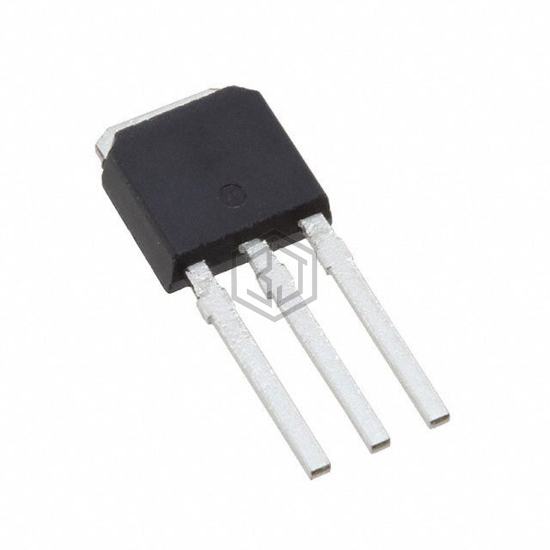

MOSFET N-CH 60V 50A IPAK
IRLU3636PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 50A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.
In Stock: 1,299
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.8mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 49 nC @ 4.5 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 3779 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 143W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
Submit your RFQ for IRLU3636PBF and get a quote within 24 hours.
