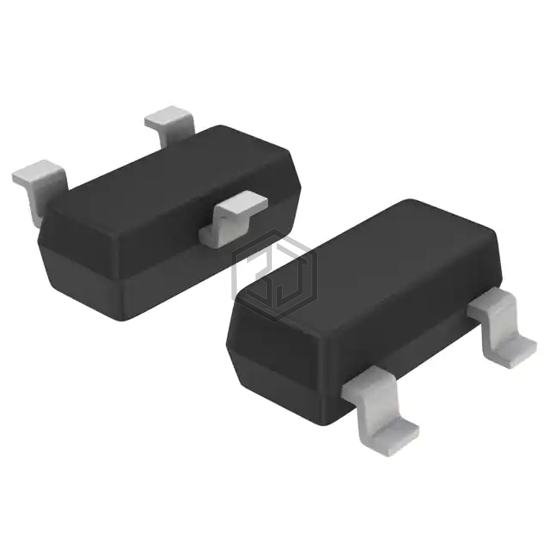

MOSFET P-CH 30V 2.3A SOT23
IRLML9303TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 2.3A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 2,026
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 165mOhm @ 2.3A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 2 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 160 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Micro3™/SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
