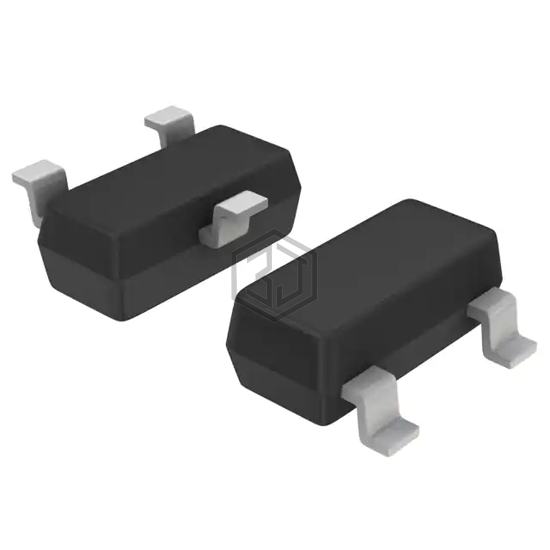

MOSFET P-CH 30V 760MA SOT23
IRLML5103TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 760MA SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 293,986
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 760mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 600mA, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 75 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 540mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Micro3™/SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for IRLML5103TRPBF and get a quote within 24 hours.
