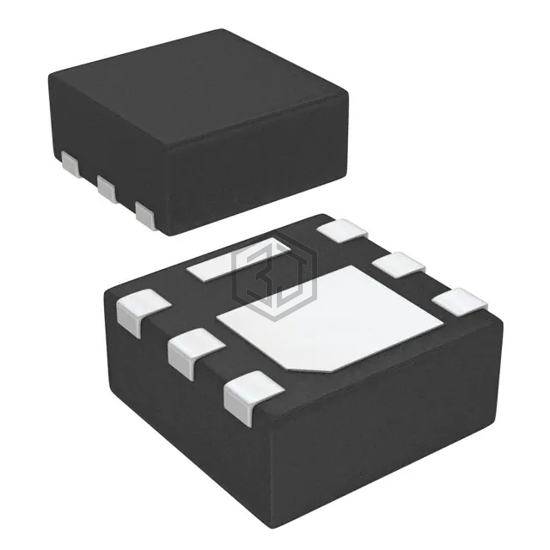

MOSFET N-CH 30V 8.7A/19A 6PQFN
IRLHS6342TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 8.7A/19A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerVDFN.
In Stock: 855
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 8.7A (Ta), 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 15.5mOhm @ 8.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1019 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) |
| Package / Case | 6-PowerVDFN |
Submit your RFQ for IRLHS6342TRPBF and get a quote within 24 hours.
