MOSFET N-CH 20V 26A/40A PQFN

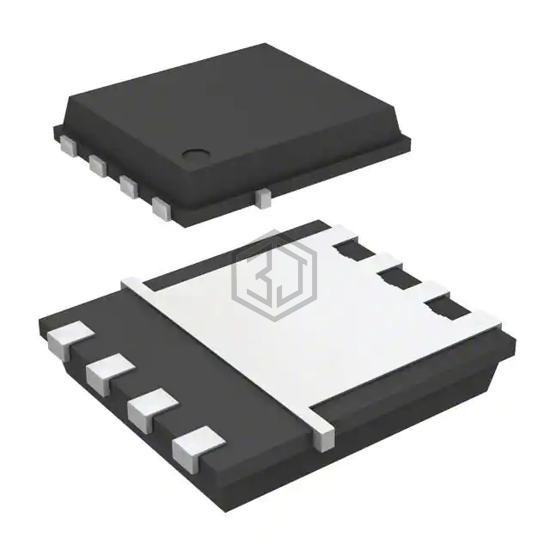

IRLHM620TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 26A/40A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 12,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 20A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 78 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 3620 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.7W (Ta), 37W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (3x3) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for IRLHM620TRPBF and get a quote within 24 hours.
