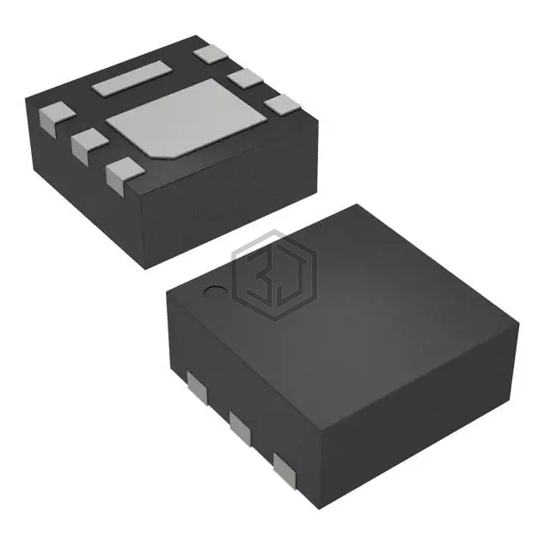

MOSFET N-CH 80V 12.5A 6PQFN
IRL80HS120 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 80V 12.5A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 6-VDFN Exposed Pad.
In Stock: 1,581
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 7 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 540 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 11.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) |
| Package / Case | 6-VDFN Exposed Pad |
Submit your RFQ for IRL80HS120 and get a quote within 24 hours.
