IGBT 600V 85A 350W SUPER247

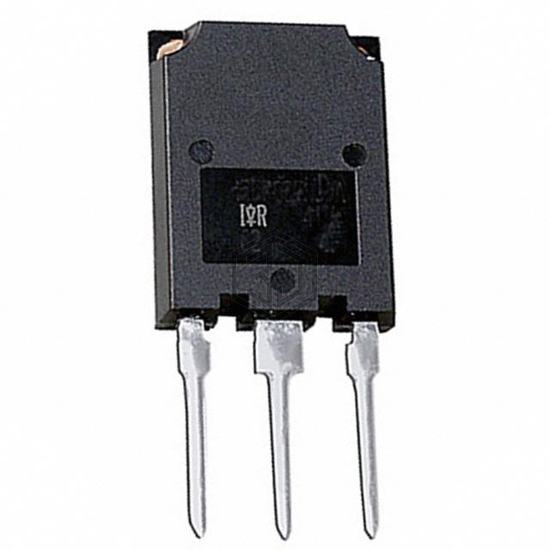

IRG4PSC71KPBF is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 85A 350W SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-274AA, current - collector (ic) (max) 85 A.
In Stock: 2,068
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 85 A |
| Current - Collector Pulsed (Icm) | 200 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 60A |
| Power - Max | 350 W |
| Switching Energy | 790µJ (on), 1.98mJ (off) |
| Input Type | Standard |
| Gate Charge | 340 nC |
| Td (on/off) @ 25°C | 34ns/54ns |
| Test Condition | 480V, 60A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-274AA |
| Supplier Device Package | SUPER-247™ (TO-274AA) |
Submit your RFQ for IRG4PSC71KPBF and get a quote within 24 hours.
