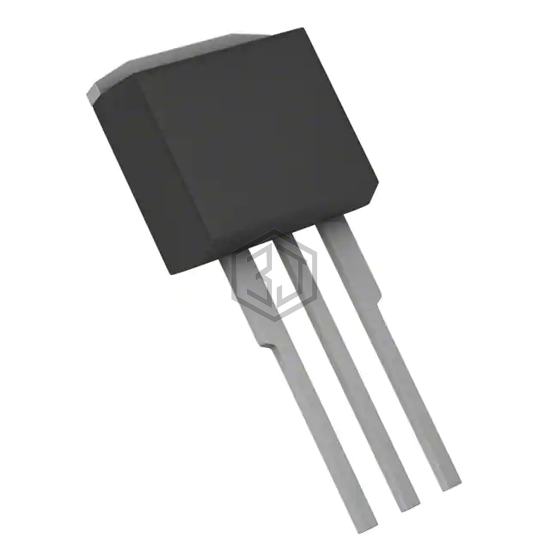

MOSFET N-CH 200V 43A TO262
IRFSL38N20DPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 200V 43A TO262. Key specifications: mounting type Through Hole, package / case TO-262-3 Long Leads, I²Pak, TO-262AA.
In Stock: 724
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 43A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 54mOhm @ 26A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 91 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-262 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
Submit your RFQ for IRFSL38N20DPBF and get a quote within 24 hours.
