MOSFET N CH 30V 32A PQFN5X6

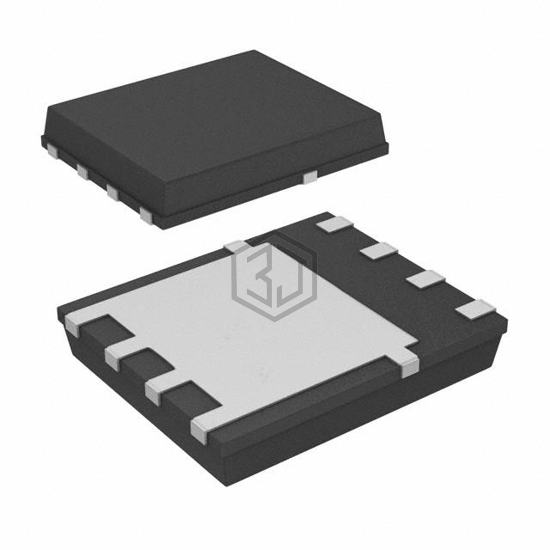

IRFH8311TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N CH 30V 32A PQFN5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TQFN Exposed Pad.
In Stock: 5,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 169A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 66 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4960 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 96W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) |
| Package / Case | 8-TQFN Exposed Pad |
Submit your RFQ for IRFH8311TRPBF and get a quote within 24 hours.
