MOSFET N-CH 30V 24A/104A PQFN

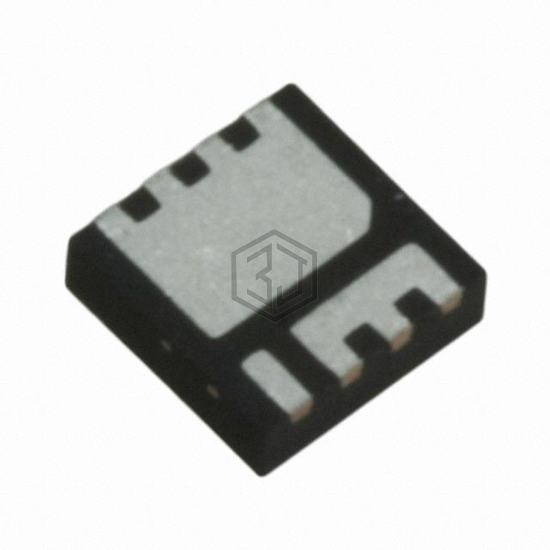

IRFH7932TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 24A/104A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 69
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 104A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4270 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) Single Die |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for IRFH7932TRPBF and get a quote within 24 hours.
