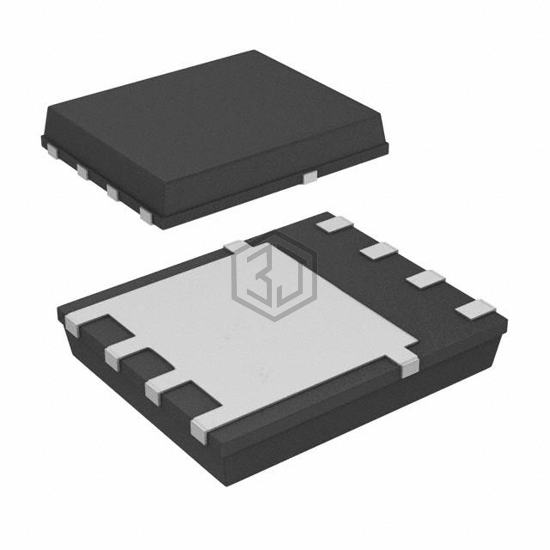

MOSFET N-CH 100V 11A/58A 8PQFN
IRFH7110TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 11A/58A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TQFN Exposed Pad.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 13.5mOhm @ 35A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 87 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3240 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-TQFN Exposed Pad |
Submit your RFQ for IRFH7110TRPBF and get a quote within 24 hours.
