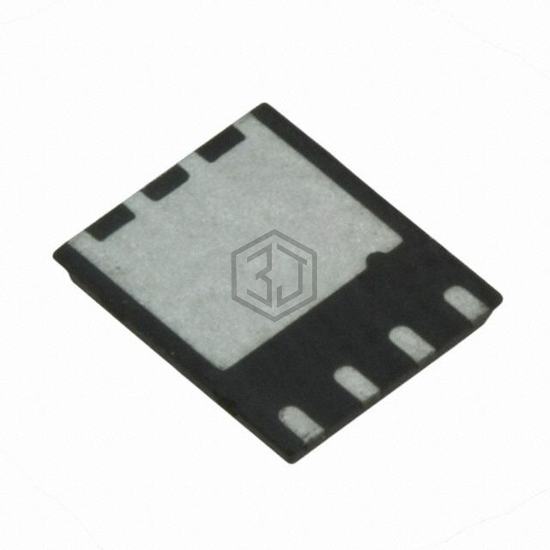

MOSFET N-CH 20V 49A/100A 8PQFN
IRFH6200TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 49A/100A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 11,922
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 49A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.95mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 1.1V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 230 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 10890 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for IRFH6200TRPBF and get a quote within 24 hours.
