MOSFET N-CH 150V 5A/27A PQFN

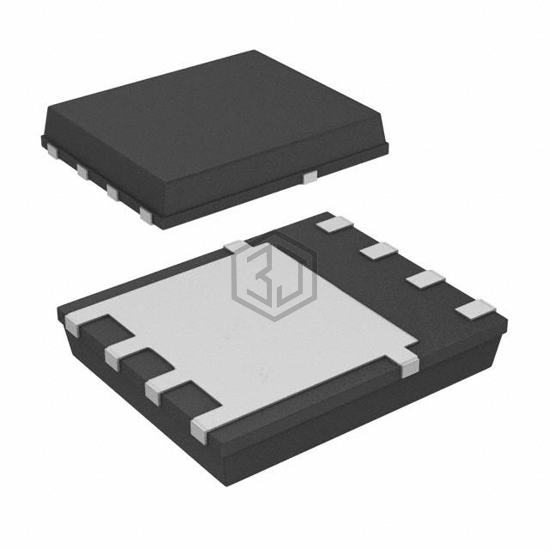

IRFH5215TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 150V 5A/27A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VQFN Exposed Pad.
In Stock: 6,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta), 27A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 58mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1350 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) |
| Package / Case | 8-VQFN Exposed Pad |
Submit your RFQ for IRFH5215TRPBF and get a quote within 24 hours.
