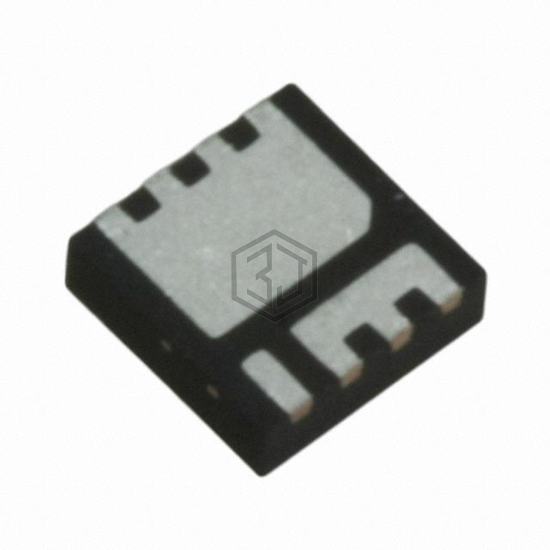

MOSFET N-CH 100V 9.3A/46A PQFN
IRFH5053TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 9.3A/46A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 1,297
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 9.3A (Ta), 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 9.3A, 10V |
| Vgs(th) (Max) @ Id | 4.9V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1510 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 8.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) Single Die |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for IRFH5053TRPBF and get a quote within 24 hours.
