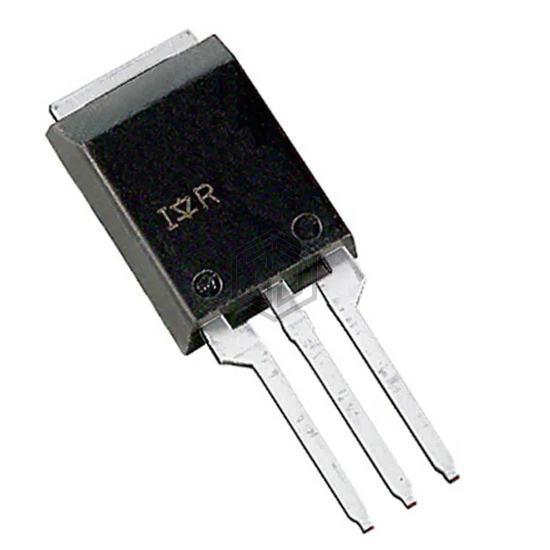

MOSFET N-CH 40V 206A SUPER-220
IRFBA1404PPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 206A SUPER-220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-273AA.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 206A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3.7mOhm @ 95A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7360 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | SUPER-220™ (TO-273AA) |
| Package / Case | TO-273AA |
Submit your RFQ for IRFBA1404PPBF and get a quote within 24 hours.
