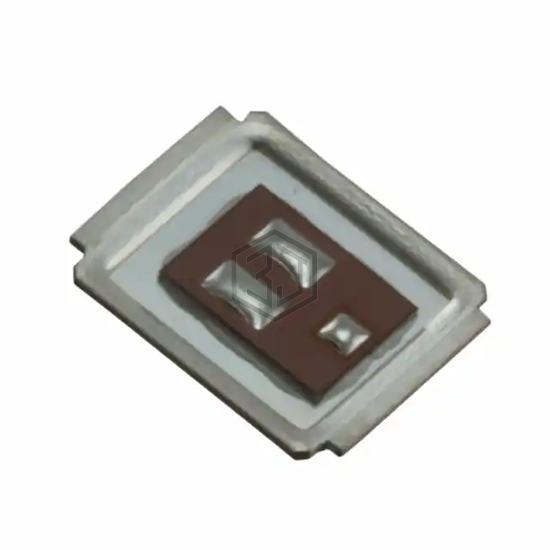

MOSFET P-CH 30V 22A DIRECTFET
IRF9383MTRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 22A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric MX.
In Stock: 3,676
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.9mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7305 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 113W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ MX |
| Package / Case | DirectFET™ Isometric MX |
