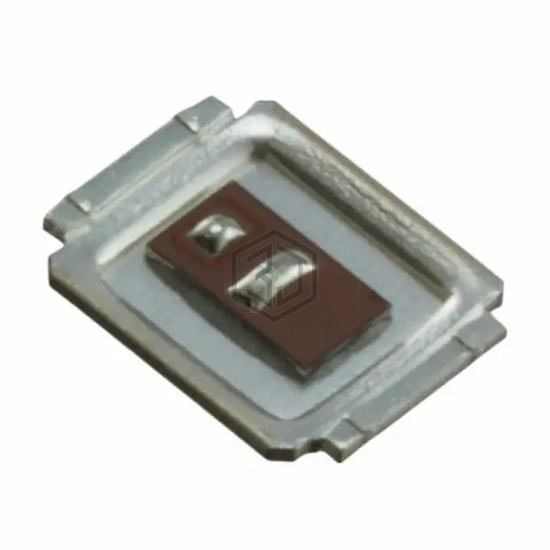

MOSFET N-CH 25V 17A DIRECTFET
IRF6706S2TR1PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 25V 17A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric S1.
In Stock: 838
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Ta), 63A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1810 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta), 26W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric S1 |
| Package / Case | DirectFET™ Isometric S1 |
Submit your RFQ for IRF6706S2TR1PBF and get a quote within 24 hours.
