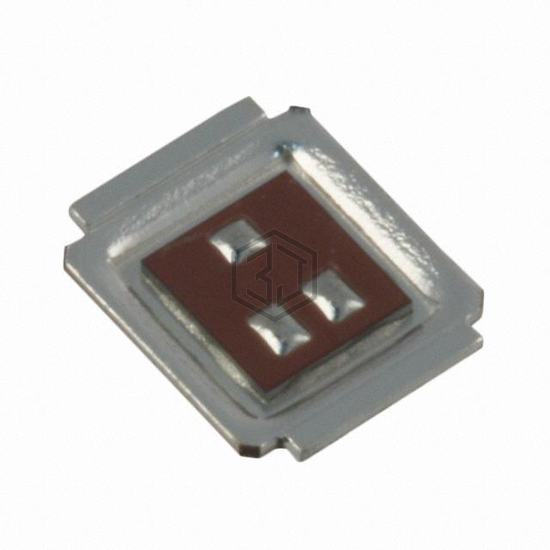

MOSFET N-CH 100V 5.7A DIRECTFET
IRF6645TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 5.7A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric SJ.
In Stock: 9,580
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 5.7A (Ta), 25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 5.7A, 10V |
| Vgs(th) (Max) @ Id | 4.9V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 890 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ SJ |
| Package / Case | DirectFET™ Isometric SJ |
Submit your RFQ for IRF6645TRPBF and get a quote within 24 hours.
