MOSFET N-CH 100V 10.3A DIRECTFET

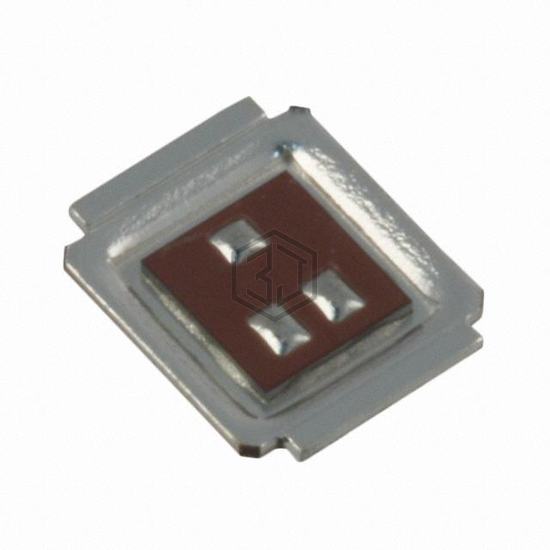

IRF6644TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 10.3A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric MN.
In Stock: 35,036
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 10.3A (Ta), 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 10.3A, 10V |
| Vgs(th) (Max) @ Id | 4.8V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2210 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ MN |
| Package / Case | DirectFET™ Isometric MN |
Submit your RFQ for IRF6644TRPBF and get a quote within 24 hours.
