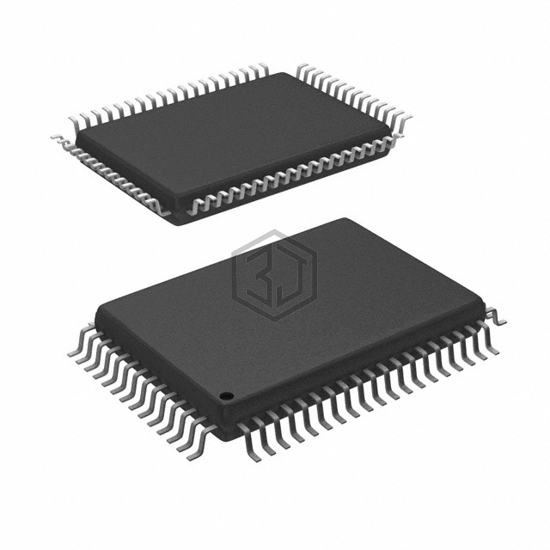

IC GATE DRVR HALF-BRIDGE 64MQFP
IR22381QPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 64MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 12.5V ~ 20V, package / case 64-BQFP.
In Stock: 5,395
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT |
| Voltage - Supply | 12.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 350mA, 540mA |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Rise / Fall Time (Typ) | 80ns, 25ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 64-BQFP |
| Supplier Device Package | 64-MQFP (20x14) |
IR22381QPBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2138QPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 64MQFP | 93% | View |
| FAN73896MX | onsemi | IC GATE DRVR HALF-BRIDGE 28SOIC | 88% | View |
| FAN73895MX | onsemi | IC GATE DRVR HALF-BRIDGE 28SOIC | 86% | View |
| FAN73893MX | onsemi | IC GATE DRVR HALF-BRIDGE 28SOIC | 86% | View |
| FAN7388MX | onsemi | IC GATE DRVR HALF-BRIDGE 20SOIC | 83% | View |
| FAN7888MX | onsemi | IC GATE DRVR HALF-BRIDGE 20SOIC | 74% | View |
Submit your RFQ for IR22381QPBF and get a quote within 24 hours.
