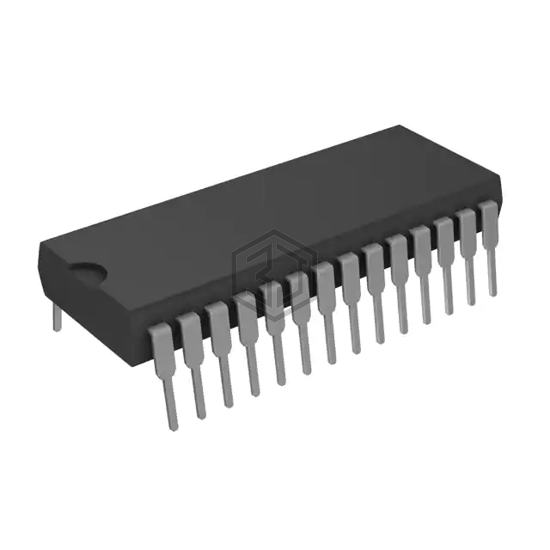

IC GATE DRVR HALF-BRIDGE 28DIP
IR2235 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 28DIP. Key specifications: mounting type Through Hole, operating temperature 125°C (TJ), voltage - supply 10V ~ 20V, package / case 28-DIP (0.600", 15.24mm).
In Stock: 1,067
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Rise / Fall Time (Typ) | 90ns, 40ns |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
IR2235 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2233PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 100% | View |
| IR2233 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 100% | View |
| IR2133PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 93% | View |
| IR2135PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 93% | View |
| IR2135 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 93% | View |
| IR2130 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 92% | View |
Submit your RFQ for IR2235 and get a quote within 24 hours.
