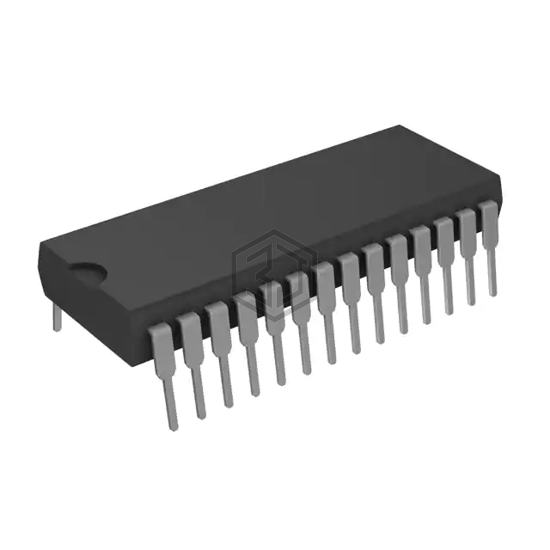

IC GATE DRVR HALF-BRIDGE 28DIP
IR2136PBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 28DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-DIP (0.600", 15.24mm).
In Stock: 167
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 125ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
IR2136PBF is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2136 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 100% | View |
| IR21368PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 100% | View |
| IR21362 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 99% | View |
| IR21362PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 99% | View |
| IR2130 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 93% | View |
| HIP4086APZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 24DIP | 51% | View |
Submit your RFQ for IR2136PBF and get a quote within 24 hours.
