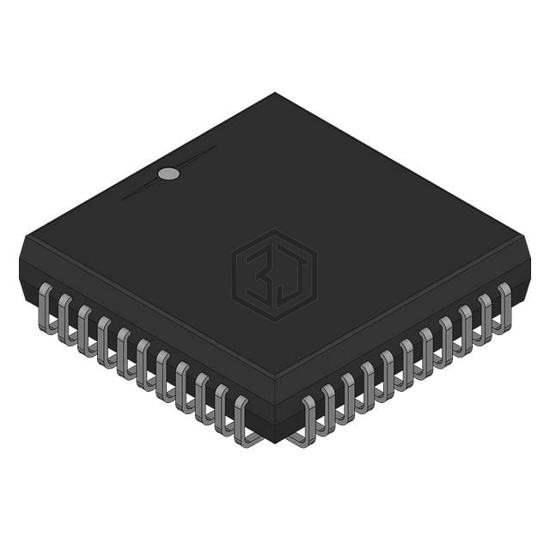

IC GATE DRVR HALF-BRIDGE 44PLCC
IR2136JTRPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 44PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 44-LCC (J-Lead), 32 Leads.
In Stock: 17,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 125ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS2334STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 20SOIC | 100% | View |
| IRS2336DJTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 100% | View |
| IRS2336DMTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 48MLPQ | 100% | View |
| IRS2334MTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28MLPQ | 100% | View |
| IRS2336DSPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
| IR2136SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
Submit your RFQ for IR2136JTRPBF and get a quote within 24 hours.
