IC GATE DRVR HALF-BRIDGE 44PLCC

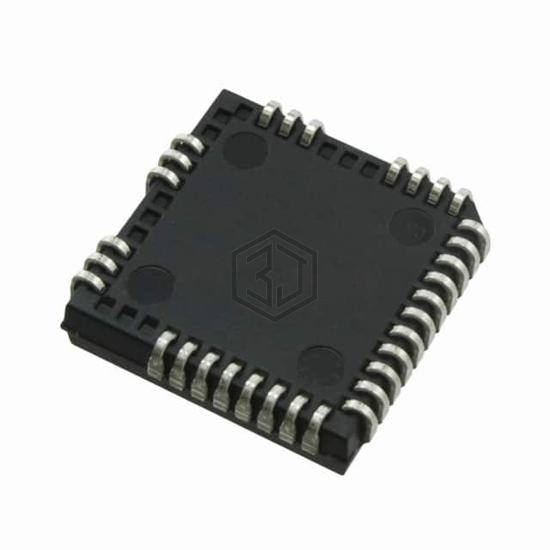

IR2133JTR is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 44PLCC. Key specifications: mounting type Surface Mount, operating temperature 125°C (TJ), voltage - supply 10V ~ 20V, package / case 44-LCC (J-Lead), 32 Leads.
In Stock: 2,714
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 90ns, 40ns |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) |
IR2133JTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2135STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
| IR2132JPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 99% | View |
| IR2132JTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 99% | View |
| IR2130SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 99% | View |
| IR2233SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 93% | View |
| IR2233JPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 93% | View |
Submit your RFQ for IR2133JTR and get a quote within 24 hours.
