IC GATE DRVR HI/LOW SIDE 14DIP

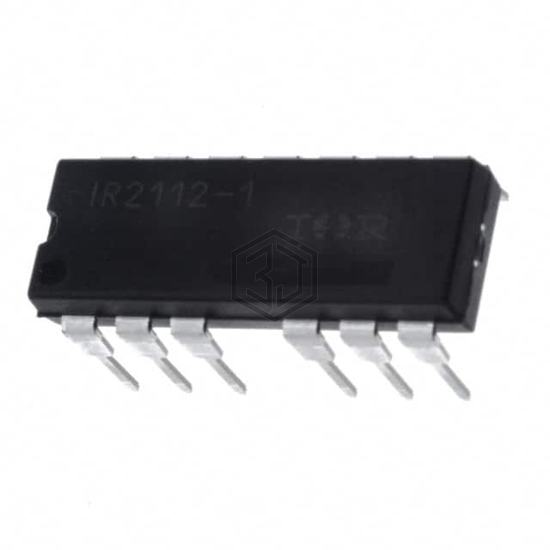

IR2112-1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HI/LOW SIDE 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 14-DIP (0.300", 7.62mm), 13 Leads.
In Stock: 1,782
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 80ns, 40ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm), 13 Leads |
| Supplier Device Package | 14-PDIP |
IR2112-1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2112-1PBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 14DIP | 100% | View |
| IR2112-2PBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 16DIP | 100% | View |
| IR2112-2 | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 16DIP | 100% | View |
| IR2101PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 79% | View |
| IR2101 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 79% | View |
| IR2131PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28DIP | 72% | View |
Submit your RFQ for IR2112-1 and get a quote within 24 hours.
