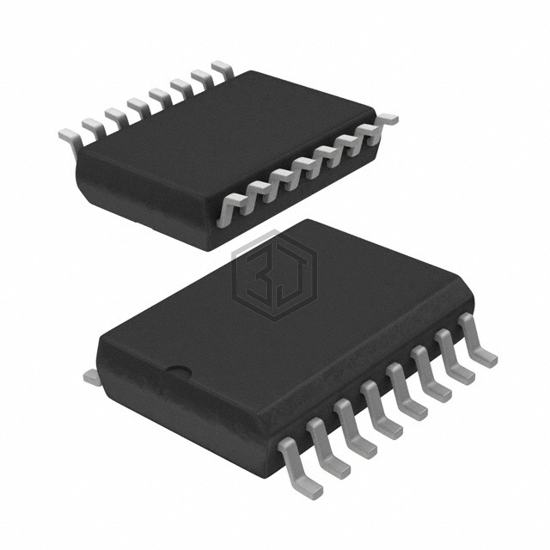

IC GATE DRVR HALF-BRIDGE 16SOIC
IR2110SPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V ~ 20V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 5,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 3.3V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500 V |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14E6-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 67% | View |
| MCP14E6-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 67% | View |
| IXDF602SIA | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 61% | View |
| IXDI602SI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 61% | View |
| IR2214SSTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 24SSOP | 61% | View |
| ADP3630ARMZ-R7 | Analog Devices Inc. | IC GATE DRVR LOW-SIDE 8MSOP | 55% | View |
Submit your RFQ for IR2110SPBF and get a quote within 24 hours.
