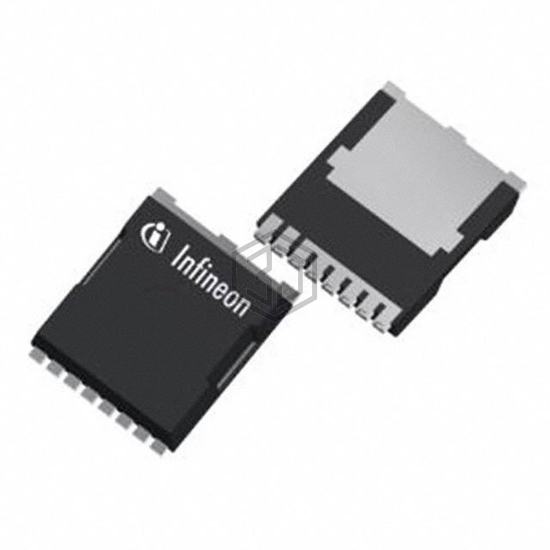

MOSFET N-CH 650V 69A 8HSOF
IPT65R033G7XTMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 650V 69A 8HSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSFN.
In Stock: 2,026
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 69A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 28.9A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1.44mA |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5000 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 391W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-HSOF-8-2 |
| Package / Case | 8-PowerSFN |
Submit your RFQ for IPT65R033G7XTMA1 and get a quote within 24 hours.
