MOSFET N-CH 700V 5.4A TO251

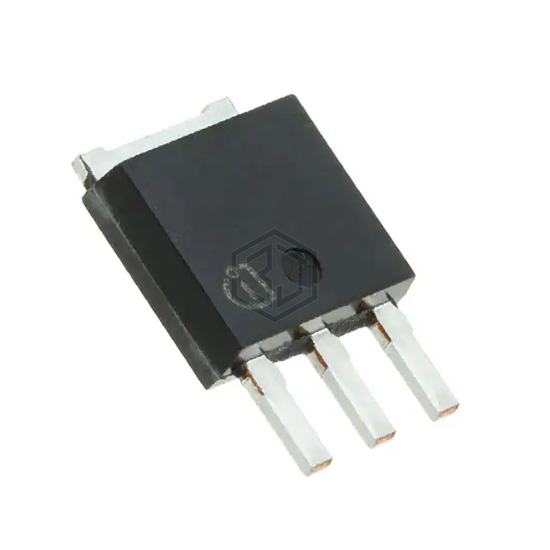

IPS70R1K4CEAKMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 700V 5.4A TO251. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.
In Stock: 256,958
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.5 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 225 pF @ 100 V |
| FET Feature | Super Junction |
| Power Dissipation (Max) | 53W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO251-3-11 |
| Package / Case | TO-251-3 Stub Leads, IPak |
