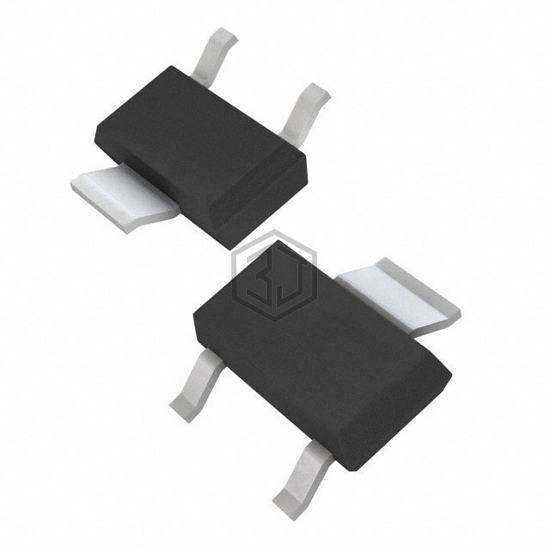

MOSFET N-CH 700V 3A SOT223
IPN70R2K0P7SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 700V 3A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 30µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.8 nC @ 10 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 130 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 6W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223 |
| Package / Case | TO-261-4, TO-261AA |
Submit your RFQ for IPN70R2K0P7SATMA1 and get a quote within 24 hours.
