CONSUMER PG-SOT223-3

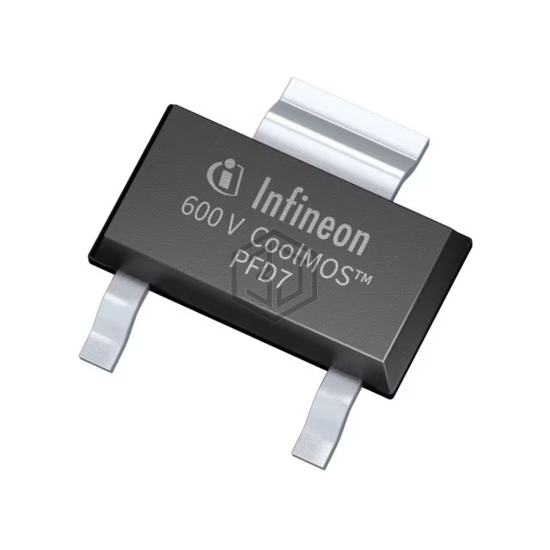

IPN60R600PFD7SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. CONSUMER PG-SOT223-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.
In Stock: 2,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 1.7A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 80µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.5 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 344 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 7W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
Submit your RFQ for IPN60R600PFD7SATMA1 and get a quote within 24 hours.
