MOSFET N-CH 600V 10A 4VSON

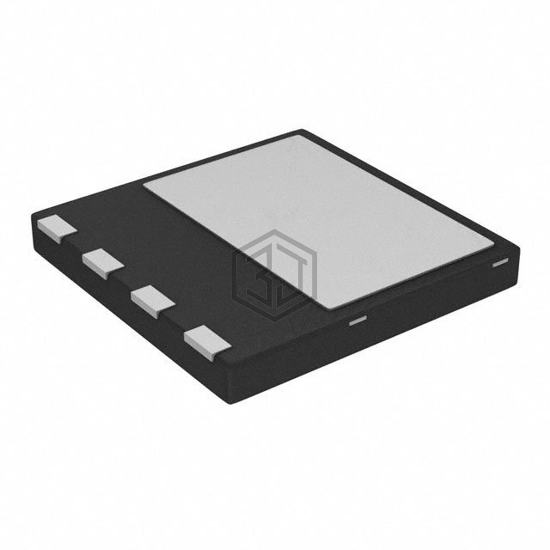

IPL60R365P7AUMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 600V 10A 4VSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 4-PowerTSFN.
In Stock: 31,553
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 365mOhm @ 2.7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 140µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 555 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 46W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-VSON-4 |
| Package / Case | 4-PowerTSFN |
Submit your RFQ for IPL60R365P7AUMA1 and get a quote within 24 hours.
