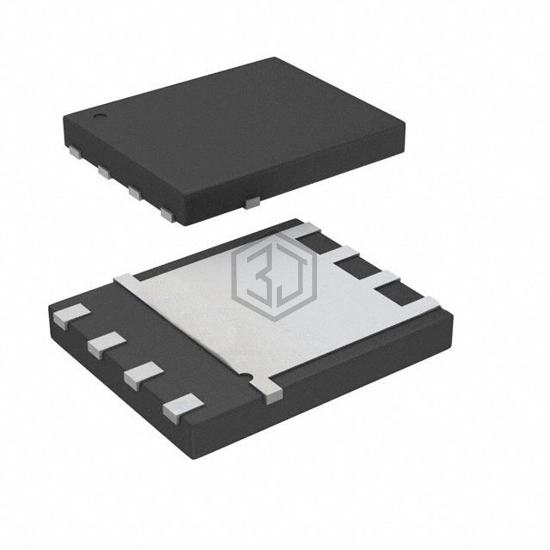

MOSFET N-CH 600V 2.3A THIN-PAK
IPL60R2K1C6SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 600V 2.3A THIN-PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 176,342
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 2.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.1Ohm @ 760mA, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 60µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.7 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 140 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 21.6W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TSON-8-2 |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for IPL60R2K1C6SATMA1 and get a quote within 24 hours.
