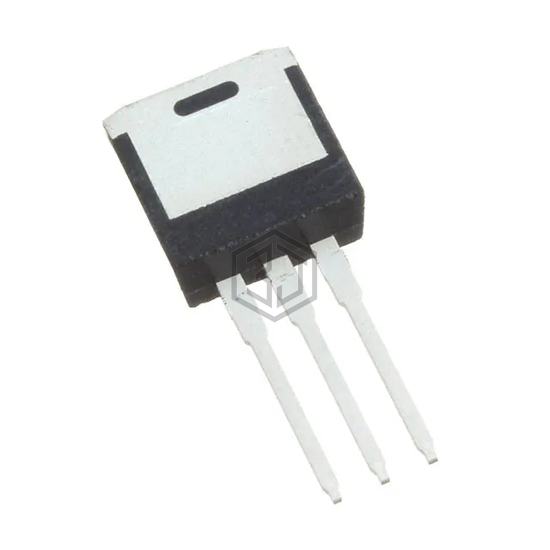

MOSFET N-CH 60V 45A TO262-3
IPI45N06S409AKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 45A TO262-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.
In Stock: 15,000
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9.4mOhm @ 45A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 34µA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3785 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 71W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO262-3 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
Submit your RFQ for IPI45N06S409AKSA1 and get a quote within 24 hours.
