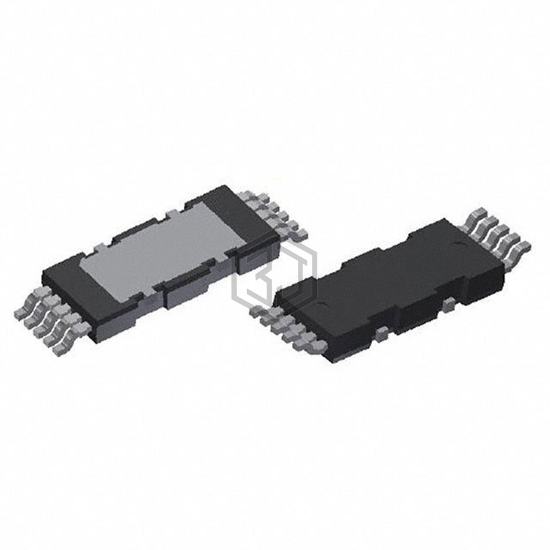

MOSFET N-CH 600V 16A HDSOP-10
IPDD60R150G7XTMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 600V 16A HDSOP-10. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-PowerSOP Module.
In Stock: 71
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 5.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 260µA |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 902 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 95W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-HDSOP-10-1 |
| Package / Case | 10-PowerSOP Module |
Submit your RFQ for IPDD60R150G7XTMA1 and get a quote within 24 hours.
