IGBT TRENCH 650V 80A TO247-4

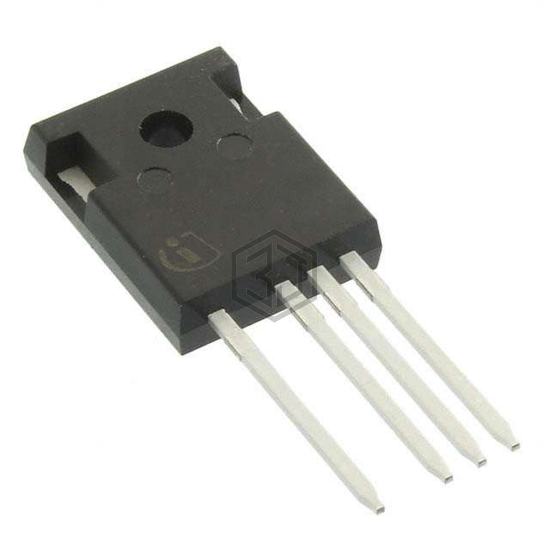

IKZ75N65ES5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 650V 80A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 80 A.
In Stock: 9,066
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 75A |
| Power - Max | 395 W |
| Switching Energy | 1.3mJ (on), 1.5mJ (off) |
| Input Type | Standard |
| Gate Charge | 164 nC |
| Td (on/off) @ 25°C | 46ns/405ns |
| Test Condition | 400V, 15A, 22.3Ohm, 15V |
| Reverse Recovery Time (trr) | 72 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Supplier Device Package | PG-TO247-4 |
Submit your RFQ for IKZ75N65ES5XKSA1 and get a quote within 24 hours.
