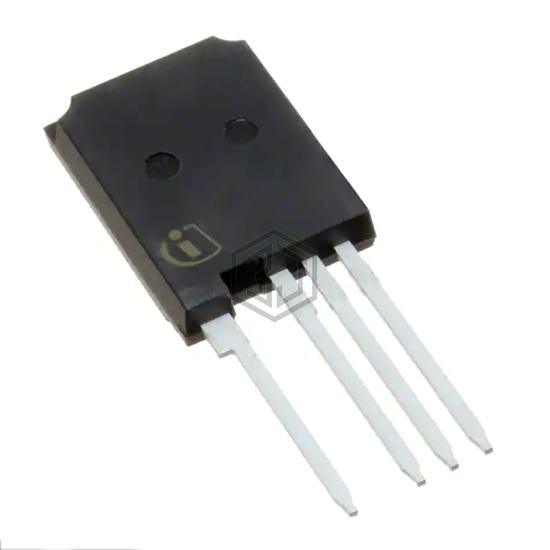

IGBT 1200V 80A TO247-4
IKY40N120CH3XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 80A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 80 A.
In Stock: 137
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 40A |
| Power - Max | 500 W |
| Switching Energy | 2.18mJ (on), 1.3mJ (off) |
| Input Type | Standard |
| Gate Charge | 190 nC |
| Td (on/off) @ 25°C | 30ns/280ns |
| Test Condition | 600V, 40A, 12Ohm, 15V |
| Reverse Recovery Time (trr) | 350 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Supplier Device Package | PG-TO247-4 |
Submit your RFQ for IKY40N120CH3XKSA1 and get a quote within 24 hours.
