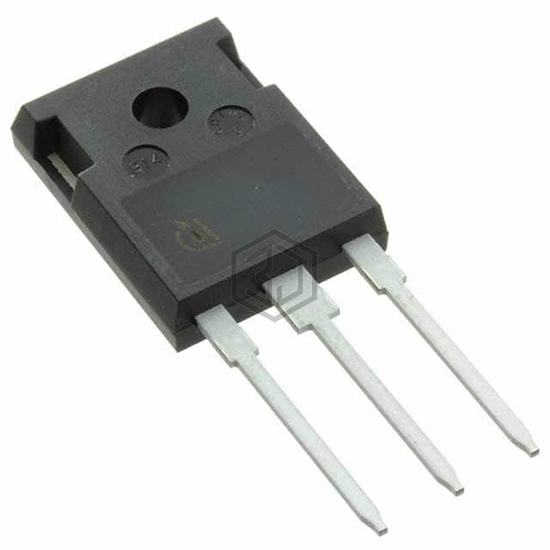

IKW50N65SS5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. INDUSTRY 14. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.
In Stock: 9,741
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 200 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 50A |
| Power - Max | 274 W |
| Switching Energy | 320µJ (on), 550µJ (off) |
| Input Type | Standard |
| Gate Charge | 110 nC |
| Td (on/off) @ 25°C | 20ns/140ns |
| Test Condition | 400V, 50A, 9Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3 |
Submit your RFQ for IKW50N65SS5XKSA1 and get a quote within 24 hours.
