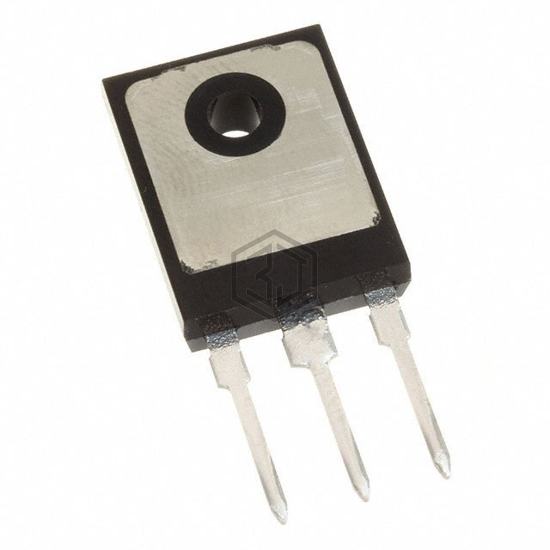

IGBT 600V 53A TO247-3
IKW30N60DTPXKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 53A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 53 A.
In Stock: 9,161
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 53 A |
| Current - Collector Pulsed (Icm) | 90 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 30A |
| Power - Max | 200 W |
| Switching Energy | 710µJ (on), 420µJ (off) |
| Input Type | Standard |
| Gate Charge | 130 nC |
| Td (on/off) @ 25°C | 15ns/179ns |
| Test Condition | 400V, 30A, 10.5Ohm, 15V |
| Reverse Recovery Time (trr) | 76 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3 |
Submit your RFQ for IKW30N60DTPXKSA1 and get a quote within 24 hours.
