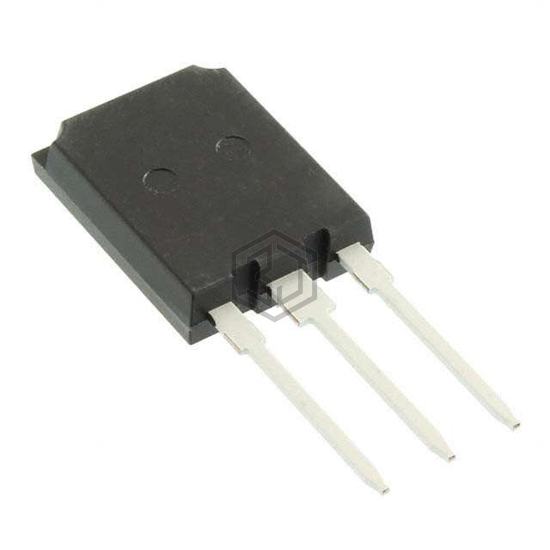

IGBT 1200V 75A TO247-3-46
IKQ75N120CS6XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 75A TO247-3-46. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 150 A.
In Stock: 3,814
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 150 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 75A |
| Power - Max | 880 W |
| Switching Energy | 5.15mJ (on), 2.95mJ (off) |
| Input Type | Standard |
| Gate Charge | 530 nC |
| Td (on/off) @ 25°C | 34ns/300ns |
| Test Condition | 600V, 75A, 4Ohm, 15V |
| Reverse Recovery Time (trr) | 440 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3-46 |
Submit your RFQ for IKQ75N120CS6XKSA1 and get a quote within 24 hours.
