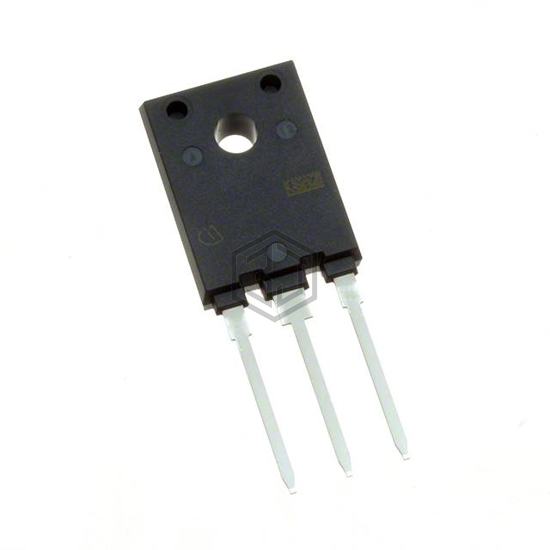

IGBT 600V 50A TO247-3
IKFW60N60DH3EXKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 50A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 53 A.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 53 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 50A |
| Power - Max | 141 W |
| Switching Energy | 1.57mJ (on), 720µJ (off) |
| Input Type | Standard |
| Gate Charge | 210 nC |
| Td (on/off) @ 25°C | 23ns/170ns |
| Test Condition | 400V, 50A, 7Ohm, 15V |
| Reverse Recovery Time (trr) | 68 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3-AI |
Submit your RFQ for IKFW60N60DH3EXKSA1 and get a quote within 24 hours.
