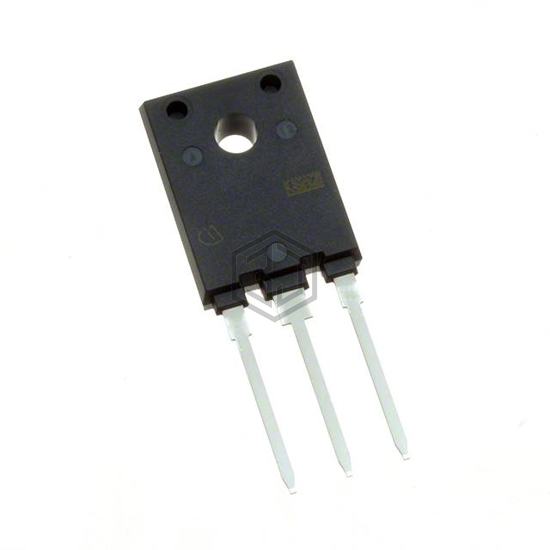

IGBT TRENCH/FS 600V 34A TO247-3
IKFW40N60DH3EXKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH/FS 600V 34A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 34 A.
In Stock: 7,031
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 34 A |
| Current - Collector Pulsed (Icm) | 90 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 30A |
| Power - Max | 111 W |
| Switching Energy | 870µJ (on), 360µJ (off) |
| Input Type | Standard |
| Gate Charge | 107 nC |
| Td (on/off) @ 25°C | 18ns/144ns |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 72 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3-AI |
Submit your RFQ for IKFW40N60DH3EXKSA1 and get a quote within 24 hours.
