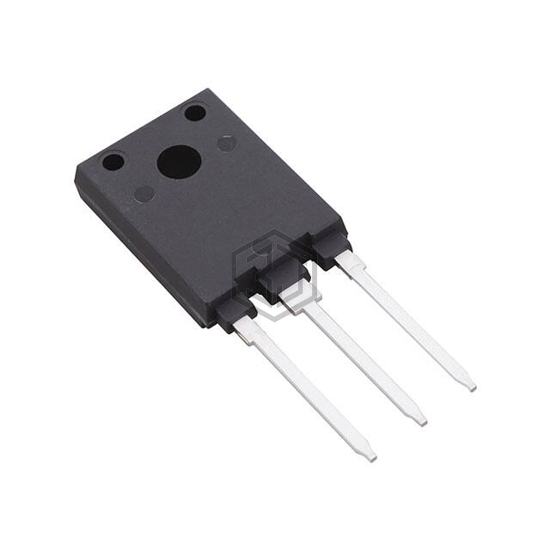

IHFW40N65R5SXKSA1
IHFW40N65R5SXKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IHFW40N65R5SXKSA1. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 61 A.
In Stock: 450
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 61 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 40A |
| Power - Max | 108 W |
| Switching Energy | 1.52mJ (on), 700µJ (off) |
| Input Type | Standard |
| Gate Charge | 142 nC |
| Td (on/off) @ 25°C | 44ns/363ns |
| Test Condition | 400V, 40A, 23.1Ohm, 15V |
| Reverse Recovery Time (trr) | 103 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-HSIP247-3-2 |
Submit your RFQ for IHFW40N65R5SXKSA1 and get a quote within 24 hours.
