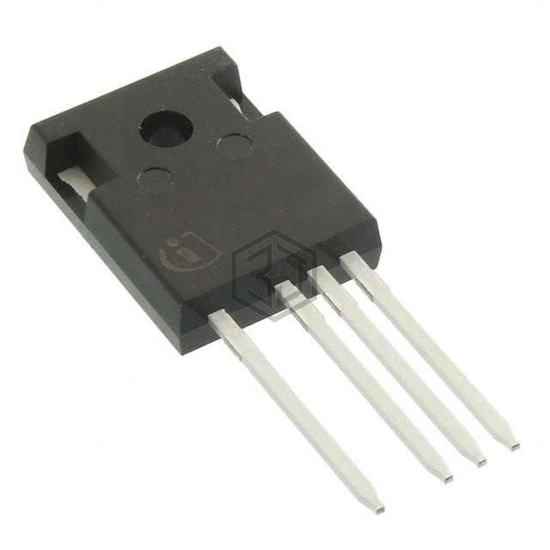

IGBT TRENCH 650V 119A TO247-4
IGZ75N65H5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 650V 119A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 119 A.
In Stock: 1,560
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 119 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
| Power - Max | 395 W |
| Switching Energy | 680µJ (on), 430µJ (off) |
| Input Type | Standard |
| Gate Charge | 166 nC |
| Td (on/off) @ 25°C | 26ns/347ns |
| Test Condition | 400V, 37.5A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Supplier Device Package | PG-TO247-4 |
Submit your RFQ for IGZ75N65H5XKSA1 and get a quote within 24 hours.
