IC OFFLINE SWITCH

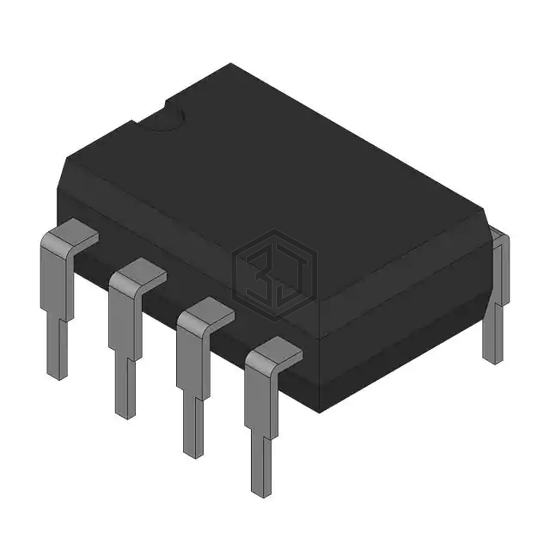

ICE2QR4780Z is a PMIC - AC DC Converters, Offline Switchers manufactured by Infineon Technologies. IC OFFLINE SWITCH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 10.5V ~ 27V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.
In Stock: 80,035
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 27V |
| Duty Cycle | 50% |
| Frequency - Switching | 52kHz |
| Power (Watts) | 39 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | PG-DIP-7 |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ICE2QR4780ZXKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 7DIP | 100% | View |
| ICE2QR4765XKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 8DIP | 93% | View |
| ICE2QR1765XKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 8DIP | 91% | View |
| ICE2QR0665ZXKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 7DIP | 84% | View |
| ICE2QR0665XKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 8DIP | 82% | View |
| ICE2QR0680ZXKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 7DIP | 81% | View |
Submit your RFQ for ICE2QR4780Z and get a quote within 24 hours.
