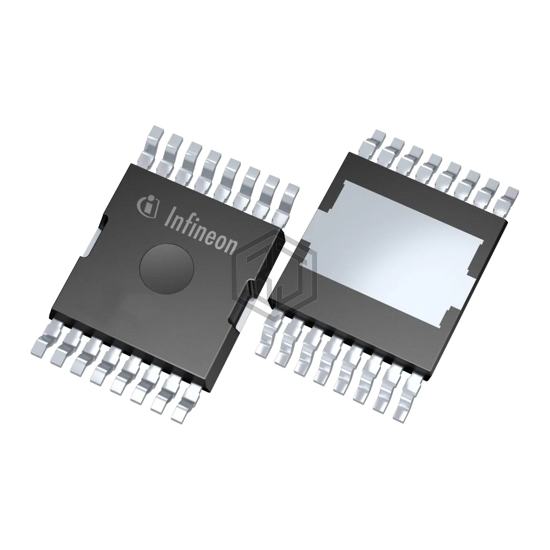

MOSFET N-CH 80V 300A HDSOP-16-2
IAUS300N08S5N012TATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 80V 300A HDSOP-16-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 16-PowerSOP Module.
In Stock: 3,600
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 300A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.2mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 275µA |
| Gate Charge (Qg) (Max) @ Vgs | 231 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 16250 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-HDSOP-16-2 |
| Package / Case | 16-PowerSOP Module |
Submit your RFQ for IAUS300N08S5N012TATMA1 and get a quote within 24 hours.
