IGBT MOD 4500V 1600A 9000W

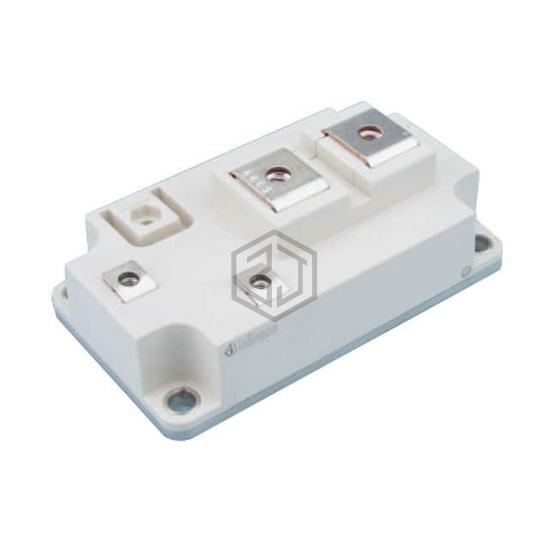

FZ800R45KL3B5NOSA2 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 4500V 1600A 9000W. Key specifications: mounting type Chassis Mount, operating temperature -50°C ~ 125°C, package / case Module, current - collector (ic) (max) 1600 A.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 4500 V |
| Current - Collector (Ic) (Max) | 1600 A |
| Power - Max | 9000 W |
| Vce(on) (Max) @ Vge, Ic | 2.85V @ 15V, 800A |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 3.1 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -50°C ~ 125°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for FZ800R45KL3B5NOSA2 and get a quote within 24 hours.
