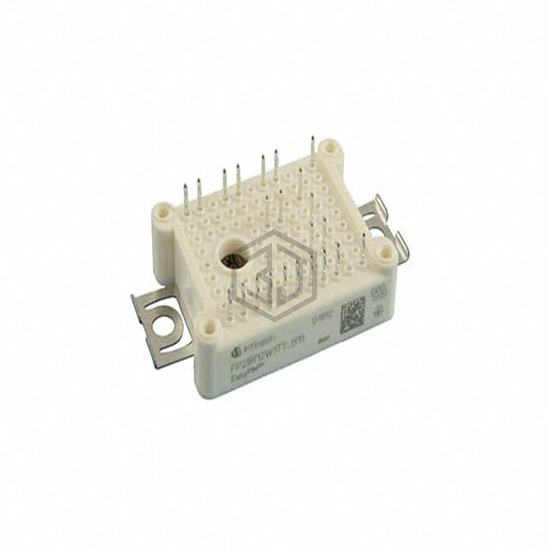

IGBT MODULE 1200V 25A 20MW EASY
FP25R12W1T7B11BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1200V 25A 20MW EASY. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C, package / case Module, current - collector (ic) (max) 25 A.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 25 A |
| Power - Max | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 25A (Typ) |
| Current - Collector Cutoff (Max) | 5.6 µA |
| Input Capacitance (Cies) @ Vce | 4.77 nF @ 25 V |
| Input | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 175°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | AG-EASY1B-2 |
Submit your RFQ for FP25R12W1T7B11BPSA1 and get a quote within 24 hours.
